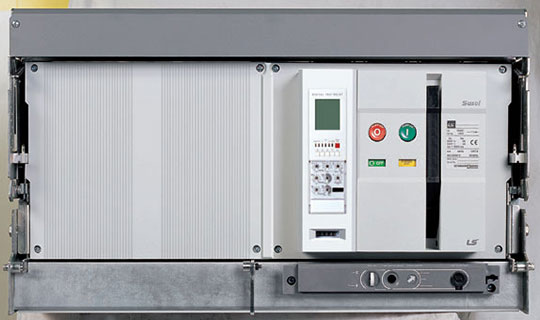

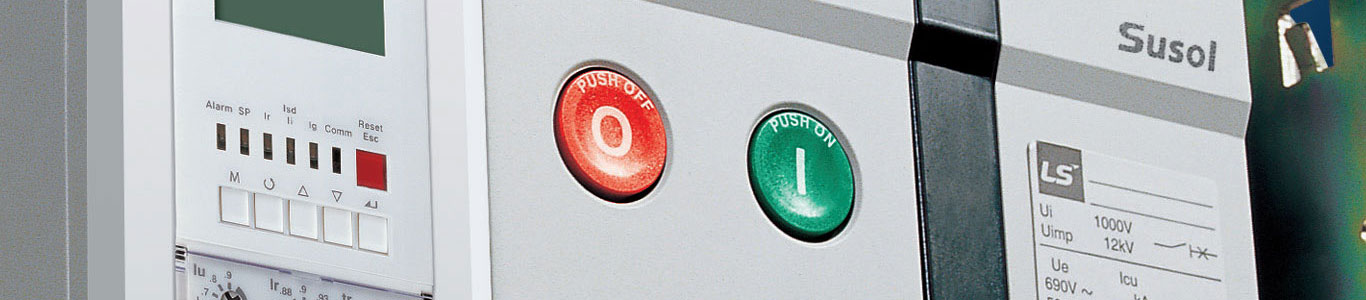

LS Susol AH-G Air Circuit Breaker

Model

AH-40G

AH-50G

AH-63G

Number of poles (P)

3, 4

Frequency (Hz)

50/60

Rated operating voltage (Ue) (V)

690

Rated insulation voltage (Ui) (V)

1000

Rated impulse withstand voltage (Uimp) (kV)

12

Ampere Frame (AF)

4000AF

5000AF

6300AF

Rated current (In max) (A) at 40℃

4000

5000

6300

Rated breaking capacity (Icu) (Sym) (kA)

690V/600V/550V

100

500V/480V/460V

150

415V/380V/230V/ 220V

150

Dimension

W=785(3p), 1015(4p)mm

Susol AH-G Models, G: 4000/5000/6300AF 3P/4P Standard RST(N)

Model	Ampere Frame	Pole	Rated Current	Rated Breaking Capacity (Icu) (Sym)				Connections		Remarks
AH-40G3-40N	4000AF	3P	4000A	500V	150kA	690V	100kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-50G3-50N	5000AF	3P	5000A	500V	150kA	690V	100kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-63G3-63N	6300AF	3P	6300A	500V	150kA	690V	100kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-40G4-40N	4000AF	4P	4000A	500V	150kA	690V	100kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-50G4-50N	5000AF	4P	5000A	500V	150kA	690V	100kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-63G4-63N	6300AF	4P	6300A	500V	150kA	690V	100kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-40G3-40A	4000AF	3P	4000A	500V	150kA	690V	100kA	Draw-out type	A Automatic connection	OCR
AH-50G3-50A	5000AF	3P	5000A	500V	150kA	690V	100kA	Draw-out type	A Automatic connection	OCR
AH-63G3-63A	6300AF	3P	6300A	500V	150kA	690V	100kA	Draw-out type	A Automatic connection	OCR
AH-40G4-40A	4000AF	4P	4000A	500V	150kA	690V	100kA	Draw-out type	A Automatic connection	OCR
AH-50G4-50A	5000AF	4P	5000A	500V	150kA	690V	100kA	Draw-out type	A Automatic connection	OCR
AH-63G4-63A	6300AF	4P	6300A	500V	150kA	690V	100kA	Draw-out type	A Automatic connection	OCR
