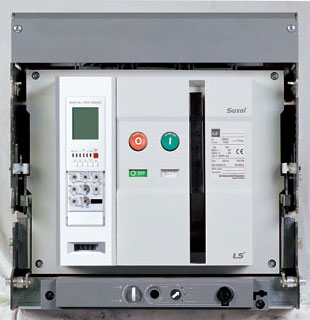

LS Susol AH-E Air Circuit Breaker

Model

AH-06E

AH-08E

AH-10E

AH-13E

AH-16E

AH-20E

AH-25E

AH-32E

AH-40E

Number of poles (P)

3, 4

Frequency (Hz)

50/60

Rated operating voltage (Ue) (V)

690

Rated insulation voltage (Ui) (V)

1000

Rated impulse withstand voltage (Uimp) (kV)

12

Ampere Frame (AF)

630AF

800AF

1000AF

1250AF

1600AF

2000AF

2500AF

3200AF

4000AF

Rated current (In max) (A) at 40℃

400

800

1000

1250

1600

2000

2500

3200

4000

630

Rated breaking capacity (Icu) (Sym) (kA)

690V/600V/550V

85

500V/480V/460V

100

415V/380V/230V/ 220V

100

Dimension

W=412(3p), 527(4p)mm

Susol AH-E Models, E: 630~4000AF 3P/4P Standard RST(N)

Model	Ampere Frame	Pole	Rated Current	Rated Breaking Capacity (Icu) (Sym)				Connections		Remarks
AH-25E3-25N	2500AF	3P	2500A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-32E3-32N	3200AF	3P	3200A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-40E3-40N	4000AF	3P	4000A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-25E4-25N	2500AF	4P	2500A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-32E4-32N	3200AF	4P	3200A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-40E4-40N	4000AF	4P	4000A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-25E3-25A	2500AF	3P	2500A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-32E3-32A	3200AF	3P	3200A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-40E3-40A	4000AF	3P	4000A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-25E4-25A	2500AF	4P	2500A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-32E4-32A	3200AF	4P	3200A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-40E4-40A	4000AF	4P	4000A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
