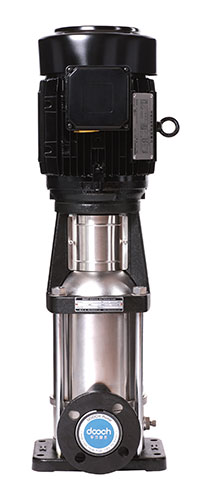

Dooch DRL3 Vertical Multistage Centrifugal Pump

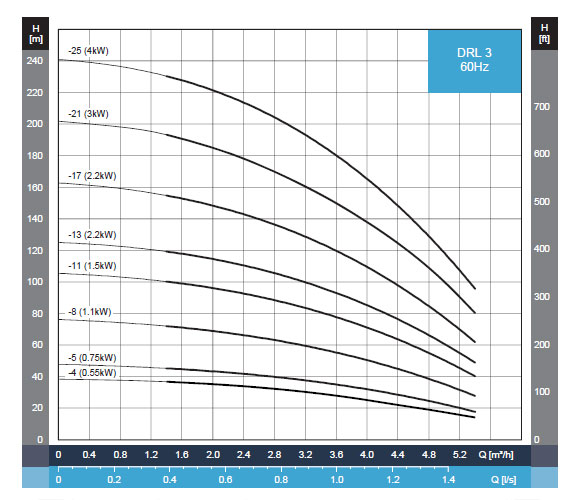

Model	Rated Flow	Flow Range	Max Pressure	Motor Power	Fluid Temp. Range	Ambient Temp.	Pipe Connection Flange
DRL3	3m³/h	1.4~5.4m³/h	24bar	0.55~4kW	-15~+120℃	Max 40℃	DN25/DN32

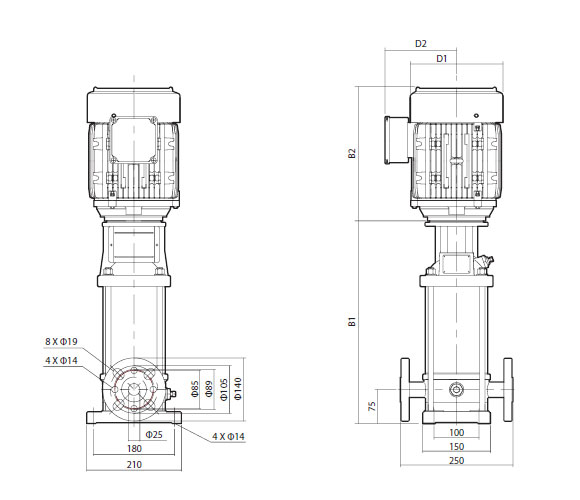

Model	Power		Dimensions (mm)					Weight (kg)
Model	kW	HP	B1	B2	B1+B2	D1	D2	Weight (kg)
DRL3-4	0.55	0.75	296	215	511	138	127	21
DRL3-5	0.75	1	324	237	561	174	139	21
DRL3-8	1.1	1.5	378	237	615	174	139	30.7
DRL3-11	1.5	2	444	268	712	196	153	32.5
DRL3-13	2.2	3	480	268	748	196	153	33.5
DRL3-17	2.2	3	552	268	820	196	153	43.5
DRL3-21	3	4	632	312	944	223	172	44.5
DRL3-25	4	5.5	704	312	1016	223	172	45.5
