| General
Specifications |
| Construction |
Panel flush mounting |
| Connection |
Screw terminals at the rear panel |
| Housing material |
Plastic(resin) light-gray |

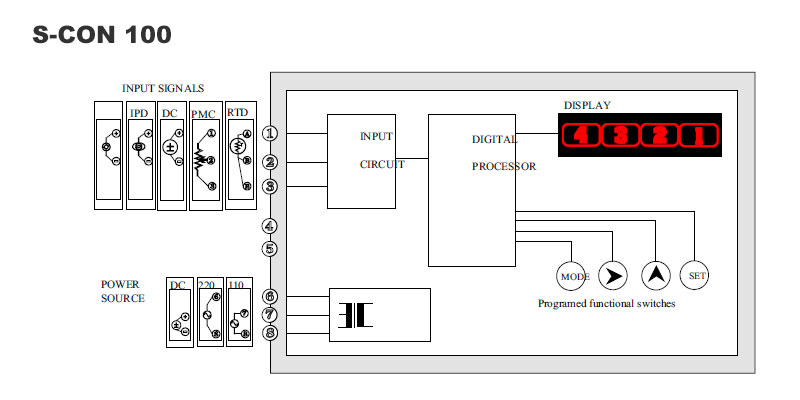

| Input configuration |
Differential Input |
| Scaling |
Programmed function switches at the front panel |
| |
| Display |
| LED |
0.6 inch or 1 inch 7-segment, red or green |
| Number of display
digit |
4(-9999 ~ 9999) -except
Polarity LED |
| Decimal point
position |
3 positions
selected by programmed function switches at the front panel |
| Over-range
indication |
Display
"oVEr" |
| Engineering unit
indication |
Sticker attached |
| |
| Installation |
| Power
Supply |
AC 110V/220V, 50/60Hz |
| DC 24V ±10%, 5VA |
| Operating
temperature |
0 to 55°C
(32 to 131°F) |
| Operating
humidity |
20-80% RH (Non-condensing) |
| Mounting |
Panel flush mounting |
| Size |
W96 x H48 x D118mm
(3.78" x 1.89" x 4.65") |
| |
| Performance |
| Accuracy |
±0.1% of FS |
| Temperature
coefficient |
±0.01% of FS +
0.1 digit / °C |
| Insulation
resistance |
100MΩ or more with 500VDC |
| Dielectric
strength |
1500V AC at 1 Minute
(input to
power) |
|
|
|
Input
|
|
DC
voltage
0
~ 300VDC, Minimum Span: 10mV
|
|
Input
|
Impedance
|
|
0
- 10 mV
|
10
KΩ or more
|
|
0
- 100 mV
|
100
KΩ or more
|
|
0
- 10 V
|
1
MΩ or more
|
|
>
12 V
|
2.5
KΩ / V
|
|
|
DC
Current
Resister
incorporated
|
|
Input
|
Resistance
|
|
4
- 20 mA
|
250
Ω
|
|
10
- 50 mA
|
100
Ω
|
|
0
- 1 mA
|
1000
Ω
|
|
|
PMC
|
Input:
100~100KΩ
|
|
RTD
|
Input:
-200~+600°C
|
|
|
|
| Ordering
Information |
| Specify code number and
variables |
| Code number |
S-CON - Input,
Output, Power (e.g S-CON 100-RNX) |
| Special input,
outputs range |
Code, Display range, Input range
(e.g S-CON 100-DNX, 0-9999,
4-20 mA) |
|
