Multi-Indicator
and Alarms SCONI-1000 Series
Large

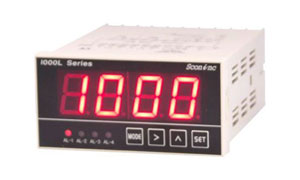

Multi-Indicator and Alarms SCONI-1000L Series
|
|
Features
- Various signal
receivings are possible in one unit
through
multiple input functions.
- Excellent reliability by using 16bit A/D converter
with high performance and accuracy.
- Various built-in
functions for various purposes such as peak hold.
- RS485 ModBus
communications can be mounted.
And SCONI-1000
series are easy to use for remote
control and
monitoring system.
- Four(4)
alarm points can be mounted for alarm outputs.
And upper and lower alarm limits, and dead band can
be set up
separately for each alarm signal.
- Two(2)
types of output - current and voltage - can be mounted
and each isloated output can
be measured separately.
- Function of simply
checking input and output signals
through
Mode button is provided as a standard.
-
By using large
FND(0.8”) display, you can easily check
the outputs
even from a long distance.(SCONI-1000L
series)
-
and more about SCONI-1000
and SCONI-1000L
More
Multi Indicators
-
Semi
Multi Indicators SCONI-1000N
-
Semi
Multi Indicators SCONI-1100
-
Semi

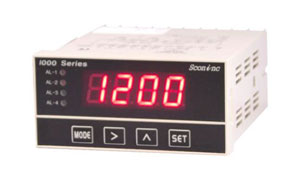

Multi Indicator and Alarm SCONI-1200
-
Semi

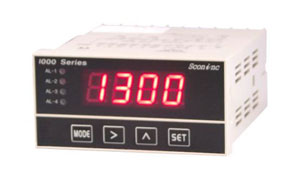

Multi Indicator ans Analog SCONI-1300
|
|
|
Types
of Various Input Signals
|
Type
|
Range
|
Symbol
|
| T/C
|
B(PR)
|
0 ~ 1800
|
TC- B
|
| R(RR)
|
0 ~ 1750
|
TC- R
|
| S(PR)
|
0 ~ 1750
|
TC- S
|
| K(CA)
|
-250 ~ 1350
|
TC- K
|
| E(CRC)
|
-199.9 ~ 700.0
|
TC- E
|
| J(IC)
|
-199.9 ~ 800.0
|
TC- J
|
| T(CC)
|
-199.9 ~ 400.0
|
TC- T
|
| N(NN)
|
-250 ~ 1350
|
TC- N
|
| RTD
|
DPt100Ω
|
-199.9 ~ 800.0
|
D-PT
|
| JPt100Ω
|
-199.9 ~ 500.0
|
J-PT
|
| Volt
|
mV
|
-100 ~ 100mV
|
DC MV
|
| 1 Volt
|
-1.0 ~ 1V
|
DC 1 V
|
| 10 Volt
|
-10 ~ 10V
|
DC 10 V
|
| mA
|
mA
|
4 ~ 20 mA
|
20MA
|
| 2wire
|
24V/4~20mA DC
|
20MA
|
|
Specifications
|
Input Resistance |
Volt type : 400㏀, mA type : 250Ω |
|
Other types : 1㏁ |
|
Source Resistance |
Pt100Ω
: 30Ω/Line , Others : 1kΩ/Line
|
|
Sensor Power |
DC
24V / 80㎃, ± 0.5%
|
|
Response Time |
100ms
(Volt, mA) , 200ms (T/C, RTD)
|
|
Relay Contact |
AC
125V (2A) , DC 30V (2A)
|
|
Communication
and Speed (ModBus)
|
RS
485 (4800, 9600, 19200 and 38400 Bps)
|
|
ID(Address)
Settings : 01~99
|
|
Data
Type : 8Bit data. Even Parity 1Stop
|
|
Protocol
: ModBus 1.1 RTU
|
|
Filtering
Function |
NONE(FAST),
4, 8, 16 and 32
|
|
Tolerance |
0.2% of Span at 23℃ |
|
Linearity |
0.1% of Span |
|
Output Load Resistance |
4~20mA DC(0 ~ 600Ω) |
|
0~10V DC(1㏀ or more) |
|
Isolation Registance |
Mmore than 100㏁ between Input/Output
(1000V
DC)
|
|
Dielectric
Strength
|
AC
1500V/ min between Input/Output/Power |
|
Power Supply |
Free
Voltage AC 85 ~ 264V (50/60Hz)) Less than 10VA
|
|
DC 24V ±10%, Less
than 200mA, 5VA
|
|
Operating
Temp.
|
-10 ~ 60℃ |
|
Operating
Humidity
|
10 ~ 90% |
|
Weight |
Approx 250g
(AC/DC) |
|
Material/Color |
Flame-resistant
resin / Gray
|
|
Dimension |
W 96 x H 48 x D 112 (mm) |
|
Cutting
Size
|
W
92.5 x H 44.5 (mm)
|
|
Mounting |
Panel Flush |
|
|
Signal
Indicators
|

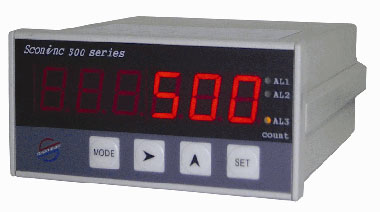

Counter
and Integrators SCONI-500
Digital
integrator contains microprocessor.
It displays integrated value digitally what
input is pulse, DC current or voltage. Range
and alarm function can be set up by key
switch and values can be stored in EEPROM
data memory. So it is possible to store
permanently and change arbitrarily.
|
|
|
-
Input
|
A
|
Frequency : 4 KHz
(Max.)
Duty Ratio : 20 ~
80%
Sensing : DC 12V /
30mA
|
|
B
|
DC 1~5V : 1 ㏁ or more
DC 4~20mA : 100 Ω
Setting : 9999 / Hr
(PCB)
|
|
X
|
DC 1~5V : 1 ㏁ or more
DC 4~20mA : 100 Ω
Resolution : 1 /
200,000
|
|
-
Output
|
Output |
Load Resistance |
Impedance |
|
DC1~5V |
1㏀ or more |
0.1Ω or less |
|
DC4~20mA |
0 ~ 500Ω |
5㏁ or more |
|
Relay contact |
AC 125V / 2A, DC 30V /
3A |
|
Serial |
RS – 422 / 485 |
|
|
|
Mosaic
Indicators SCONI-800
SCONI
800 series is graphic board indicator which
contains microprocessor. It displays displacement
of various input signal digitally as model.
Also, it is very convenient to use for range
and function can be changed by key switch
in front of panel arbitrarily.
|
|
|
Power Supply
|
AC/DC 12V ± 10%
|
|
DC 24V ± 10%(Isolation)
|
|
Power
Consumption
|
Less than 2VA |
| Tolerance |
± 0.1 % of FS. |
| Display |
4 Digit / 5 Digit / 6 Digit |
| LED |
0.57 inch or 0.4 inch / 7-Segment |
| Isolation |
Input/Output DC 500V 100㏁ or
more |
|
Isolation
Strength
|
Input/Output AC 1500V/min(DC 24V) |
|
|
Set up
Method
|
Program method by key switch |
|
Operating
Temperature
|
0 ~ 55℃ |
|
Operating
Humidity
|
20 ~ 80 % RH |
| Weight |
Approx 200g |
| Material/Colo |
ABS Resin / Black |
| Dimension |
W 75 x H 25 x D 85 (mm) |
| Mounting |
Panel Flush |
|
|
|
Small
Indicators SCONI-900
Small
size indicator which displays displacement
of input signal such as AC/DC current and
voltage digitally. Also, it is very convenient
to use for scale change can be set up by
key board.
|
|
|
Power Supply
|
AC 110V/220V(50/60Hz) ± 10%
|
|
DC 24V ± 10%
|
|
Power
Consumption
|
Less than 4VA |
| Tolerance |
± 0.2 % of FS. |
| Display |
4 Digit |
| LED |
0.4 inch 7-Segment(red) |
| Isolation |
Input/Output DC 500V
100㏁ or
more
|
|
Dielectric
Strength
|
Input/Power, AC 1500V/min |
|
|
Set up
method
|
Program method by key switch |
|
Operating
Temperature
|
0 ~ 55 ℃ |
|
Operating
Humidity
|
20 ~ 80 % RH |
| Weight |
Approx 200gr |
| Material/Colo |
ABS Resin / Block |
| Dimension |
W 76 x H 34 x D 76 (mm) |
| Cot Size |
W 70.5 x H 28.5 (mm) |
| Mounting |
Panel Flush |
|
|
|

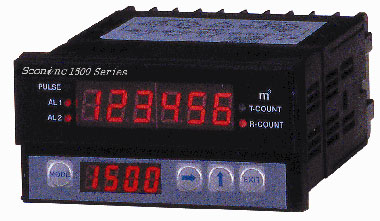

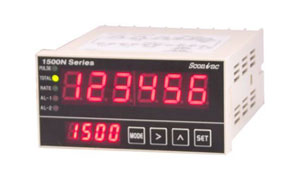

Multi
Integrating Totalizers SCONI-1500
-
10 digit total integration and 4 digit rate
display.
-
To accept multi input signal such as pulse,
mA, Volt signal.
-
Improved reliability by use of high resolution
V/F converter.
-
To contain various batch function which
can be used
for
various purposes.
-
RS 422/485 communication function which
can be used
for
remote control and monitoring.
-
To install 2 alarm point which can be set
up rate alarm,
batch
function and dead band.
-
To install isolated current, voltage output
and
also output scaling possible.
-
Pulse output function which can output external
integrating
total
value.
|
|
|
Input
Resistance
|
Volt(mA) Input : 250Ω
Pulse Input : 10㏀
|
|
Measure/Display
Period
|
Rate value :
200ms(Volt, mA, Input)
Total count :
1s(Volt, mA, Input)
(Pulse input depends
on frequency)
|
|
CMRR |
More than 140dB |
|
NMRR |
More than 60dB |
|
Filter |
Transfer average filter |
|
Sensor Powe |
DC 12V/30㎃/±0.5% |
|
Rate
|
Linearity : 0.05% FS
Repeatability : 0.1%
FS
Temperature Drift :
0.02% FS/℃
Long term drift :
0.1%/per 1000hr
|
|
Totalize
Function
|
Data Storage : More
than 10yrs
Max Count : 10 Digit
|
|
Pulse Output
|
Output type :
Isolated open collector
Rating : Max DC
50V/50mA
Max freq : Less than
5Hz
|
|
|
Communication |
RS - 422/485 (4800 bps) |
|
Relay Contact |
AC 125V(2A) , DC 30V(3A) |
|
Load Resistance |
4~20mA DC(0 ~ 600Ω)
|
|
0~10V DC(1㏀ or more) |
|
Isolation |
Input/Output, DC
500V More than 100㏁
|
|
Dielectric
Strength
|
Input/Output/Power, AC
1500V/ min |
|
Power Supply
|
AC 110/220V
±10%(50/60Hz) 4VA
|
|
DC 24V ±10%, Less
than 100mA
|
|
Operating Temp |
-10 ~ 60℃ |
|
Operating
Humidity
|
10 ~ 90% |
|
Weight |
Approx 500gr(AC),
300gr(DC) |
|
Material/Color |
ABS Resin / Black |
|
Dimension |
W 96 x H 48 x D 112 (mm) |
|
Mounting |
Panel Flush |
|
