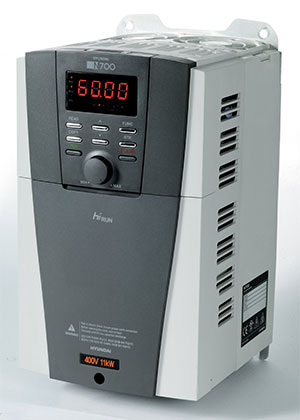

N700
HYUNDAI HiRUN
High Performance AC Drive Inverter
|
|
|
|
Applicable Motor
Capacity |
Model
|
|
3-Phase, 220V |
3-Phase, 440V |
|
5.5kW
/ 7.5HP |
N700-055LF |
N700-055HF |
|
7.5kW
/ 10HP |
N700-075LF |
N700-075HF |
|
11kW
/ 15HP |
N700-110LF |
N700-110HF |
|
15kW
/ 20HP |
N700-150LF |
N700-150HF |
|
18.5kW
/ 25HP |
N700-185LF |
N700-185HF |
|
22kW
/ 30HP |
N700-220LF |
N700-220HF |
|
30kW
/ 40HP |
N700-300LF |
N700-300HF |
|
37kW
/ 50HP |
N700-370LF |
N700-370HF |
|
45kW
/ 60HP |
N700-450LF |
N700-450HF |
|
55kW
/ 75HP |
N700-550LF |
N700-550HF |
|
75kW
/ 100HP |
|
N700-750HF |
|
90kW
/ 120HP |
|
N700-900HF |
|
110kW
/ 150HP |
|
N700-1100HF |
|
132kW
/ 175HP |
|
N700-1320HF |
|
-
Excellent
Applicability to Various Loads
-
Easy Maintenance & Simple Repair
-
High Reliability & Durability |
-
Compliance with RoHS
-
Lower Audible Noise |
|
|
|
|
Features
|
|
Improved Control
Performance |
|
Advanced Sensorless Vector Control at
Ultra Low Speed |
|
Excellent control performance with all
machines thanks to the improvement of torque characteristics at low speeds.
-
Sensorless vector control: 200% or greater at 0.5Hz
-
Sensored vector control: 150% or greater at 0Hz |
|
|
|
Excellent Response Speeds and Toque
Control Performance |
|
Improvement of the torque response
characteristic minimizes the speed deviation when the load is changed.
(Quick response to a sudden load change
is realized.)
Strong torque restriction function
(adjustable 0~200%) can protect the machine from external unexpected load changes.
Minimize the response speed regarding
the terminal command. |
|
|
|
Improvement of Reduced Torque
Characteristic |
|
Reduced torque characteristic
(VP2.0 power) is added for softer motor operation.
Optimization for energy saving by the
characteristic of loads is achieved. |
|
|
|
Expansion of Multi-speed Control Function |
|
Besides the basic accel.-decel. time, a
maximum of 7 individual accel.-decel. time settings are available. With terminal input only, you can change
the accel-deceleration time, which gives more precise control.
Three step accel.-decel. time setting
is possible. |
|
|
|
Stable and Strong Torque Operation |
|
As users may select either speed
control or torque control at their convenience, they can apply N700 inverters
to various applications (Vector Control). |
|
|
|
Expansion in The Field Weakening
Operation Range |
|
The field weakening operation range
where the maximum torque operation can be made is extended to 320Hz. |
|
|
|
|
Easy Operation and
Maintenance |
|
Various Inverter Display Functions |
|
All the data of the inverter are
displayed on the monitor.
-
The trip data of each phase are
displayed in case of input phase loss and output short
-
Temperature on the IGBT
-
Others (In-Out voltage, current,
frequency, DC voltage, input power, RPM of motor, rotation direction,
frequency change, PID Feedback,
accumulated operating time
(hour, minute), total power up time (hour, minute), error and trip count
display)
|
|
|
|
RUN(0,1,2) Relay Control Terminal Added |
|
Run output terminals (RN0,1,2) are
added for user’s convenience |
|
|
|
12 User Group Codes |
|
Users can save the preferred codes
(Max. 12) for fast and easy operation and set or adjust data in accordance
with the characteristics of the loads. |
|
|
|
Convenient Operation |
|

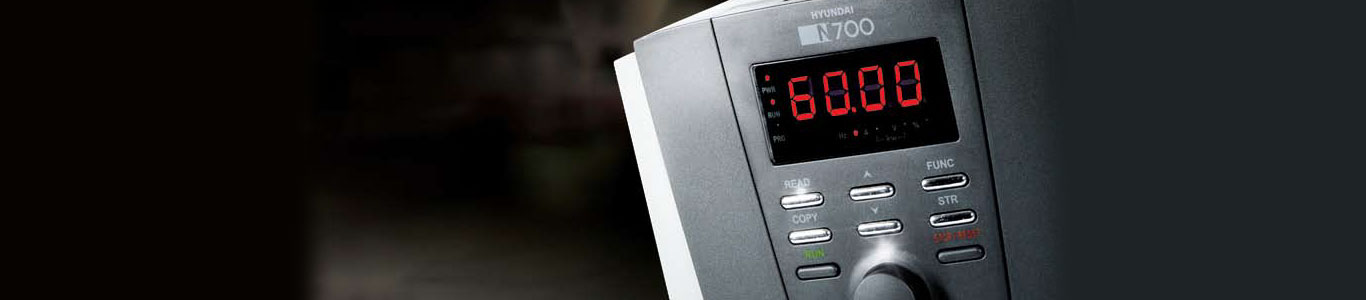

Operator
-
Large LED and convenient settings
(code/parameter)
-
Noise resistant design (Max. 10m cable)
OPE-N7 (standard) has parameter copy
function. |
|
|
|
Maintenance |
|
Detachable cooling fan and independent
DC bus capacitor make replacement and
maintenance easy and simple
Adoption of detachable control circuit
terminals |
|
|
|
|
Various Applications
& Load
Compatibility |
|
Conveyor & Transport Machines |
|
Conveyor |
|
- Multi relay output terminal
- Accurate acceleration &
Deceleration
- Overweight prevention by using
over-torque signal
- Load sliding prevention by curve
operating |
|
Elevator and Parking Machine |
|
- Multi step speed driving (slow, normal,
fast)
- Overload protection by over-torque
signal
- Load sliding prevention by high speed
torque response
- High torque output at extremely slow
speed range |
|
Crane & Hoist |
|
- High starting torque of 200% or greater
at 0.5Hz
- Slip protection function (vector
control)
- Multi speed operation (1~15 speed)
- Frequency arrival signal output (motor
brake on/off)
- Built-in BRD for crane (22kW and
under), braking resistor |
|
Factory Automation |
|
- Factory automation with PLC
- Lifting and traveling switching
operation
- High speed torque response for slip
down prevention
- Soft start
/ stop |
|
|
|
Metal & General
Machinery |
|
Metal Spreader |
|
- Over current protection
- Soft start/stop
- Direct and various braking method
selection |
|
Wire Drawing Machine |
|
- Powerful operation at low speed
- Sensored vector control, line speed
control, location control
- System construction by application
control board |
|
Press & Cutter |
|
- Powerful DC braking for user protection
- Powerful starting torque
- 15 intelligent input-output terminals
for precision control
[ input (1~8, FW), output (11~14, AL, RN)
]
|
|
Centrifugal Separator & Agitator |
|
- Stable operation at wide frequency
range (0.1~400Hz)
- Machine protection by a built-in
regenerative braking unit
(below 22kW)
- Precise acceleration & deceleration
and multi-speed setting |
|
|
Fan & Pump |
|
Air Conditioning & Dust Collecting
Fan |
|
- Energy saving by selecting torque
characteristic of load
- Restart function when input power is
interrupted
- Machine protection by soft start/stop
- Auto operation by precise PID control
function
- Low noise operation
- Quick responsiveness to load change by
frequency jump
and multi speed operation
|
|
|
|
Cooling Tower |
|
- Stable operation by high quality energy
supply
- Energy saving by speed and torque
control
- System circumstance protection
function to check
the ambient temperature
|
|
|
|
Textile Machine |
|
Spinning Machine |
|
- Soft start
/ stop for prevention of snap
and cut off
- Unit design for bad circumstance (dust,
cotton)
- Improvement of product quality by
stable operating speed |
|
|
|
Tender & Sewing Machine |
|
- Regular tension control function and
load short
protection function
- Accurate speed and torque control to
improve product quality
- Synchronized control and PID control
function |
|
|
|
Washing Machine |
|
- Powerful torque boost function
- Over torque limit function
- Separate setting of acceleration and
deceleration time
- Built-in regenerative braking unit
(below 22kW)
- Soft start/stop |
|
|
|
|
|
|
Specifications:
200V class
|
|
Inverter
Model (N700-___LF) |
055LF |
075LF |
110LF |
150LF |
185LF |
220LF |
300LF |
370LF |
450LF |
550LF |
|
Applicable Motor (4P, kW) |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
|
Rated Capacity
(kVA) |
200V |
8.3 |
11 |
15.9 |
22.1 |
26.3 |
32.9 |
41.9 |
50.2 |
63 |
76.2 |
|
240V |
9.9 |
13.3 |
19.1 |
26.6 |
31.5 |
39.4 |
50.2 |
60.2 |
75.8 |
91.4 |
|
Rated Output Voltage |
3-phase, 200
~ 240V (±10%) 50/60Hz |
|
Rated Input Voltage |
3-phase, 200
~ 240V (This corresponds to supply voltage.) |
|
Rated Output Current (A) |
24 |
32 |
46 |
64 |
76 |
95 |
121 |
145 |
182 |
220 |
|
Braking |
Dynamic Braking (short-time) |
Built-in BRD circuit (The discharging resistor is optional.) |
External dynamic braking unit (option) |
|
Minimum Value of Resistor (Ω) |
17 |
17 |
17 |
8.7 |
6 |
6 |
3.5 |
3.5 |
2.4 |
2.4 |
|
Weight (kg) |
7 |
7 |
7 |
15 |
15 |
15 |
25 |
37 |
37 |
51 |
|
Dimensions (W
x D x H) (mm) |
182
x 336 x 195 |
290
x 478 x 230 |
330x580x
250 |
400
x 610 x 260 |
440x650x
271 |
|
Control Method |
Space vector modulation PWM system |
|
Output Frequency Range |
0.1
~ 400Hz |
|
Frequency Accuracy |
Digital : ±0.01% of Max. frequency, Analog : ±0.2% (25±10℃) |
|
Frequency Resolution |
Digital setting : 0.01Hz, Analog setting : Max. frequency /
4,000 |
|
Voltage
/ Frequency
Characteristic |
V/F control (constant torque, reduced torque), free V/F
control, sensorless vector control |
|
Overload Capacity |
150% / 60sec |
|
Acceleration/Deceleration Time |
0.1
~ 3600. Sec (Linear/curve setting) |
|
DC Braking |
Performs at start ; under set frequency at deceleration, via
an external input
(braking force, time and temperature frequency)
|
|
Input |
Frequency
Setting |
Operator |
Set by up/down key |
|
External Signal |
Input voltage : DC 0~+10V, -10~+10V (Input impedance 10KΩ) /
Input current : 4~20mA (Input impedance 180Ω) |
|
Forward
/ Reverse / Start / Stop |
Operator |
Run key/ Stop key (Change FW/RV by function command) |
|
External Signal |
FW Run/Stop (No contact), RV set by terminal assignment (NO/NC
selection), 3-wire input possible |
|
External Port |
Set by RS485 |
|
Thermistor
Input Terminal |
1 terminal (PTC characteristics) |
|
Output |
Intelligent
Output Terminal
|
Analog Voltage, Analog Current, Pulse Line Output |
|
Display Monitor |
Output Frequency, Output Current, Motor Torque, Scaled Value
of Output Frequency, Trip History, I/O Terminal Condition, Input Power, Output Voltage |
|
Standard Application |
Low voltage directive 72/73/EEC & EMC directive
2004/108/EC, CE, UL, cUL |
|
Environmental
Conditions |
Ambient Temperature |
-10 ~ 50℃ |
|
Storage
Temperature |
-20 ~ 65℃ |
|
Humidity |
20 ~ 90% RH (non-condensing) |
|
Vibration |
5.9 m/s2(0.6G), 10~55Hz(5.5~22kW) |
2.94m/s2(0.3G),
10~55Hz(30~132kW) |
|
Location |
Less than 1000m above sea level, indoors (no corrosive gas nor
dust) |
|
Operator |
OPE-N7 (4-digit LED) |
|
|
|
|
Specifications:
400V class
|
|
Inverter
Model (N700-___HF) |
055HF |
075HF |
110HF |
150HF |
185HF |
220HF |
300HF |
370HF |
450HF |
550HF |
750HF |
900HF |
1100HF |
1320HF |
|
Applicable Motor (4P, kW) |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
75 |
90 |
110 |
132 |
|
Rated Capacity
(kVA) |
400V
|
8.3 |
11 |
15.9 |
22.1 |
26.3 |
33.2 |
41.9 |
50.2 |
63 |
76.2 |
103.2 |
121.9 |
150.3 |
180.1 |
|
480V
|
9.9 |
13.3 |
19.1 |
26.6 |
31.5 |
39.9 |
50.2 |
60.2 |
75.8 |
91.4 |
123.8 |
146.3 |
180.4 |
216.1 |
|
Rated Output Voltage |
3-phase,
380 ~ 480V (±10%) 50/60Hz
|
|
Rated Input Voltage |
3-phase,
380 ~ 480V (This corresponds to supply voltage.)
|
|
Rated Output Current (A) |
12 |
16 |
23 |
32 |
38 |
48 |
58 |
75 |
90 |
110 |
149 |
176 |
217 |
260 |
|
Braking |
Dynamic Braking (short-time) |
Built-in BRD circuit (The discharging resistor is optional.) |
External dynamic braking unit (option) |
|
Minimum Value of Resistor (Ω) |
70 |
50 |
50 |
30 |
20 |
20 |
12 |
12 |
8 |
8 |
6 |
6 |
6 |
6 |
|
Weight (kg) |
7 |
7 |
7 |
15 |
15 |
15 |
25 |
37 |
37 |
51 |
70 |
70 |
90 |
90 |
|
Dimensions (W
x D x H) (mm) |
182
x 336 x 195 |
290
x 478 x 230 |
330x580
x 250 |
400
x 610 x 260 |
440x650
x 271 |
420
x 740 x 320
|
500
x 780 x 320
|
|
Control Method |
Space vector modulation PWM system |
|
Output Frequency Range |
0.1
~ 400Hz |
|
Frequency Accuracy |
Digital : ±0.01% of Max. frequency, Analog : ±0.2% (25±10℃) |
|
Frequency Resolution |
Digital setting : 0.01Hz, Analog setting : Max. frequency /
4,000 |
|
Voltage
/ Frequency
Characteristic |
V/F control (constant torque, reduced torque), free V/F
control, sensorless vector control |
|
Overload Capacity |
150% / 60sec |
|
Acceleration/Deceleration Time |
0.1
~ 3600. Sec (Linear/curve setting) |
|
DC Braking |
Performs at start ; under set frequency at deceleration, via
an external input
(braking force, time and temperature frequency)
|
|
Input |
Frequency
Setting |
Operator |
Set by up/down key |
|
External Signal |
Input voltage : DC 0~+10V, -10~+10V (Input impedance 10KΩ) /
Input current : 4~20mA (Input impedance 180Ω) |
|
Forward
/ Reverse / Start / Stop |
Operator |
Run key/ Stop key (Change FW/RV by function command) |
|
External Signal |
FW Run/Stop (No contact), RV set by terminal assignment (NO/NC
selection), 3-wire input possible |
|
External Port |
Set by RS485 |
|
Thermistor
Input Terminal |
1 terminal (PTC characteristics) |
|
Output |
Intelligent
Output Terminal
|
Analog Voltage, Analog Current, Pulse Line Output |
|
Display Monitor |
Output Frequency, Output Current, Motor Torque, Scaled Value
of Output Frequency, Trip History, I/O Terminal Condition, Input Power, Output Voltage |
|
Standard Application |
Low voltage directive 72/73/EEC & EMC directive
2004/108/EC, CE, UL, cUL |
|
Environmental
Conditions |
Ambient Temperature |
-10 ~ 50℃ |
|
Storage
Temperature |
-20 ~ 65℃ |
|
Humidity |
20 ~ 90% RH (non-condensing) |
|
Vibration |
5.9 m/s2(0.6G), 10~55Hz(5.5~22kW) |
2.94m/s2(0.3G),
10~55Hz(30~132kW) |
|
Location |
Less than 1000m above sea level, indoors (no corrosive gas nor
dust) |
|
Operator |
OPE-N7 (4-digit LED) |
|
|
