MAX Geared Motor

- Small and mid-sized helical geared motor

- Size : 88, 105, 135, 153, 172, 181, 205, 235, 270mm, height to the CL of output shaft

- Power : 0.2 ~ 15KW (1/4 ~ 20HP), 1 & 3-phase

- Reduction ratio : 1/5 ~ 1/600

- Mounting : horizontal, vertical or in-line reducer

- Gear head with flange fit for IEC standard motor available

- Compact size, light weight and low noise level by advanced optimal gear design

- High precision, efficiency and reliability by grinding and gear-shaving

- Strong and durable gear by carburizing suitable for AGMA standard

- Standardization of all parts and modular system of major components

- Accumulated know-how and quality from the experience of over 40 years in this field



Home

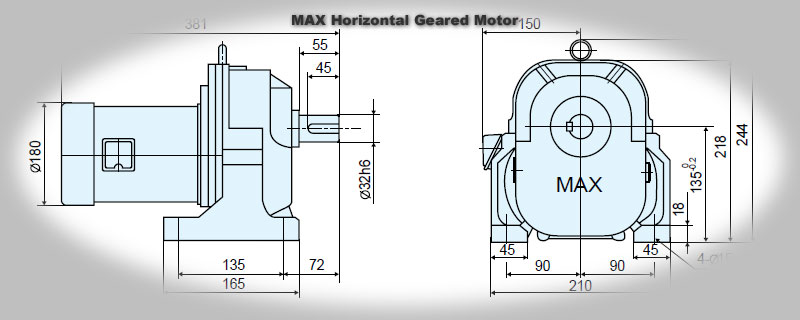

MAX Horizontal Geared Motor

MAX Vertical Geared Motor

MAX In-Line Gear  Reducer

Contact us

Model

Electricity Phase

Motor

Gear Ratio

MG-F88

MG-F88 IEC Frame Gearhead

Three Phase

0.2KW (1/4HP)

1/5 ~ 1/100

Single Phase

0.2KW (1/4HP)

1/5 ~ 1/100

MG-F88 with Brake

Three Phase

0.2KW (1/4HP)

1/5 ~ 1/75

MG-F105

MG-F105 IEC Frame Gearhead

Three Phase

0.4KW (1/2HP)

1/5 ~ 1/100

MG-F105C  0.4KW (1/2HP)

1/120 ~ 1/900

Single Phase

0.4KW (1/2HP)

1/5 ~ 1/100

MG-F105C  0.4KW (1/2HP)

1/120 ~ 1/900

MG-F105 with Brake

Three Phase

0.4KW (1/2HP)

1/5 ~ 1/100

MG-F115

Three Phase

0.4KW (1/2HP)

1/5 ~ 1/100

MG-F135

MG-F135 IEC Frame Gearhead

Three Phase

0.75KW (1HP)

1/5 ~ 1/30

Single Phase

0.75KW (1HP)

1/5 ~ 1/30

MG-F153

MG-F153 IEC Frame Gearhead

Three Phase

1.5KW (2HP)

1/5 ~ 1/30

0.75KW (1HP)

1/40 ~ 1/120

V105 + F153  0.4KW (1/2HP)

1/120 ~ 1/200

Single Phase

1.5KW (2HP)

1/5 ~ 1/30

0.75KW (1HP)

1/40 ~ 1/120

V105 + F153  0.4KW (1/2HP)

1/120 ~ 1/200

MG-F172

MG-F172 IEC Frame Gearhead

Three Phase

3.7KW (5HP)

1/5 ~ 1/20

2.2KW (3HP)

1/5 ~ 1/30

1.5KW (2HP)

1/40 ~ 1/120

V105 + F172  0.4KW (1/2HP)

1/300 ~ 1/600

Single Phase

1.5KW (2HP)

1/40 ~ 1/120

V105 + F172  0.4KW (1/2HP)

1/300 ~ 1/600

MG-F172 with Brake

Three Phase

1.5KW (2HP)

1/60 ~ 1/100

MG-F181

Three Phase

7.5KW (10HP)

1/5 ~ 1/10

5.5KW (7.5HP)

1/5 ~ 1/20

3.7KW (5HP)

1/30

2.2KW (3HP)

1/40 ~ 1/100

V153 + F181  1.5KW (2HP)

1/150 ~ 1/200

V135 + F181  0.75KW (1HP)

1/150 ~ 1/600

Single Phase

V135 + F181  0.75KW (1HP)

1/150 ~ 1/600

MG-F181 with Brake

Three Phase

2.2KW (3HP)

1/60

MG-F205

Three Phase

11KW (15HP)

1/5 ~ 1/10

7.5KW (10HP)

1/15 ~ 1/20

5.5KW (7.5HP)

1/30

3.7KW (5HP)

1/40 ~ 1/60

2.2KW (3HP)

1/60 ~ 1/120

1.5KW (2HP)

1/90

V153 + F205  1.5KW (2HP)

1/300

MG-F235

Three Phase

15kw (20HP)

1/5 ~ 1/10

11KW (15HP)

1/15 ~ 1/20

7.5KW (10HP)

1/30

5.5KW (7.5HP)

1/40 ~ 1/60

3.7KW (5HP)

1/75

2.2KW (3HP)

1/90 ~ 1/120

1.5KW (2HP)

1/100 ~ 1/120

MG-F270

Three Phase

15KW (20HP)

1/15 ~ 1/30

11KW (15HP)

1/30

7.5KW (10HP)

1/40 ~ 1/60

5.5KW (7.5HP)

1/75 ~ 1/100

3.7KW (5HP)

1/90 ~ 1/100

2.2KW (3HP)

1/120

V172 + F270  2.2KW (3HP)

1/200
