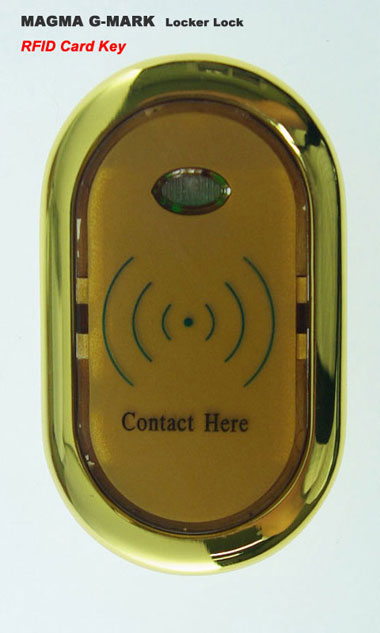

Features of MAGMA G-MARK Digital Locker / Cabinet Lock

  • Enhanced security control
  • Enhanced guest privacy protection: Guest (locker user) can become aware if manager had opened the lock.
  • Alarm sound in case of the forced unlocking other than registered card keys.
  • Distinct sounds on every different lock operation mode.
  • Prevention against theft or mischievous tries: Alarm sounds and unlocking function stops for 1 minute if wrong cards are tried to open over 5 times.
  • Battery-low warning: Warning lamp and sound.
  • External power inlet terminal in case that battery is dead.
  • Manual & automatic locking mode selectable.
  • Automatic relock function: Lock is relocked automatically if door is not opened in 3 seconds after lock is released.
  • Mountable for left or right-hinged doors.
  • Light-weighted and small-sized lock set have a barely effect on a possible drooping of the door.
  • Opening function without a damage in lock set in case of emergency that all registered cards do not work at all.



Specifications



Key Type

RFID Card Key

Operating Mode

Lock/Unlock, Manual/Automatic

Type

- Individual Operating

- Cabinet Handle Type

     (No Separate Door handle required.)

- Compact Size : W41 x H71

Card Key

- Standard : RFID(125Khz/13.56MHz) Card 2ea

- Total 8 Keys can be registered

Locker Door

- Mountable for left or right-hinged doors

- Applicable Thickness : 15, 18, 20mm

Motor

Heat Resistant DC Geared Motor

Material

- Outer & Inner Body : PC & ABS

- Actuating Part : Zinc Die Casting

Finish

Metallic Paint

Power Supply

Alkaline AA Batteries, 1.5V x 4ea

Battery Life

12 Months (Approximately)

Dimensions

- Outer : W41 x H71 x D19.5mm

- Inner : W65 x H127 x D26.5mm

Mounting

Surface Mounting
